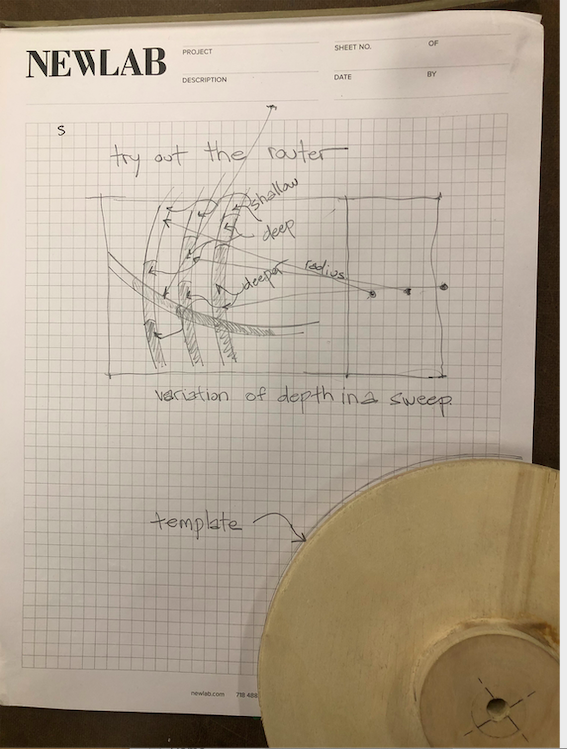

Original sketch for radial arm coordinates

Draw a sketch and set the radius parameters of the arm pins
The Tools
The Board
The Idea
The Art

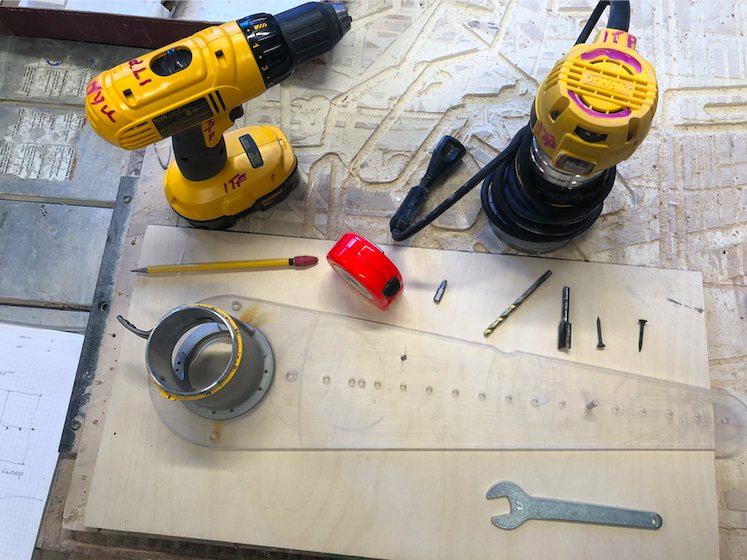

Tools used and plywood scrap to router

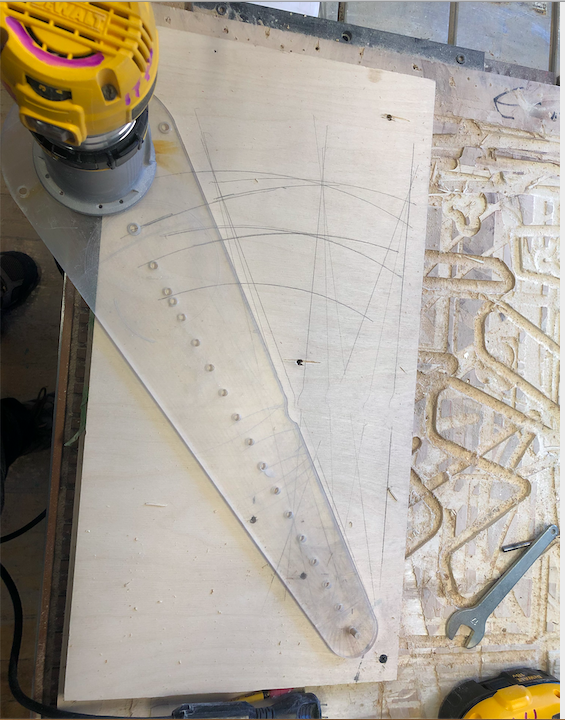

Setting the 3 radial pin points. 2″x2″ 4″x4″ 6″x6″

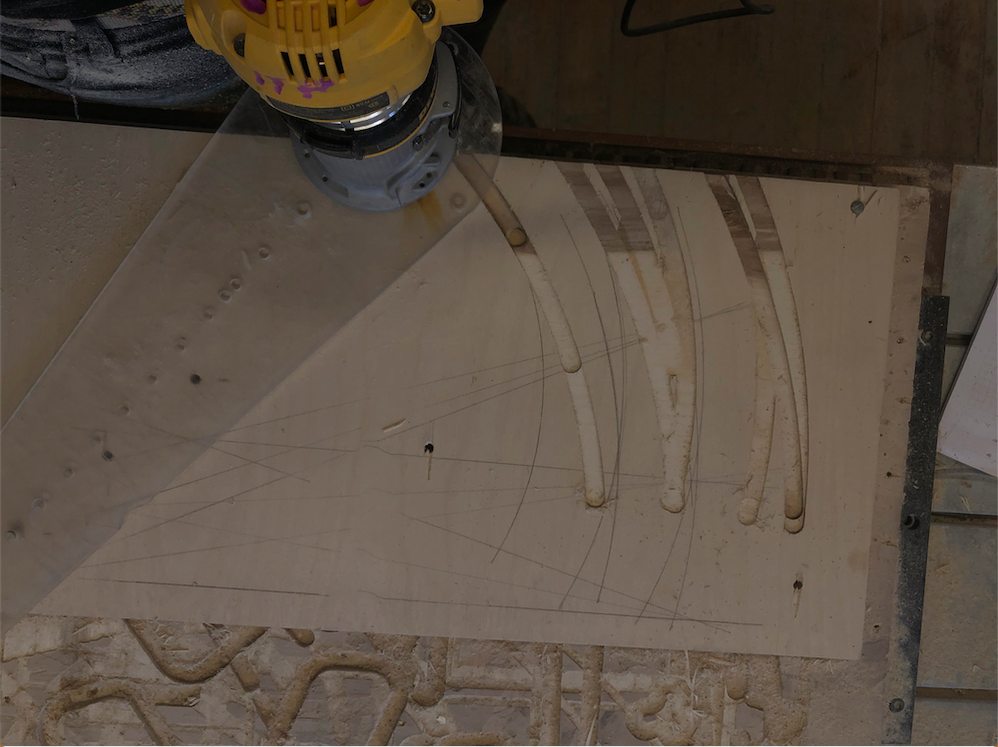

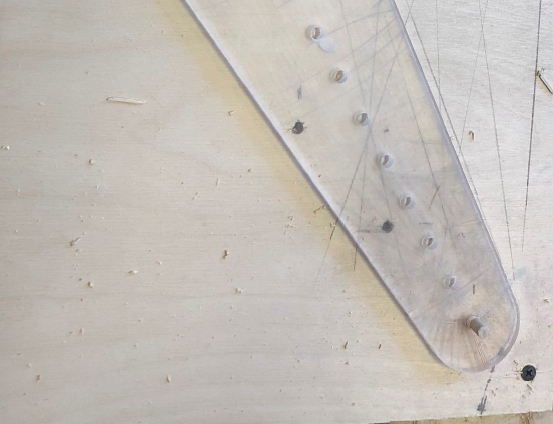

First radial router cut at 2″x2″ pin and first hole in template

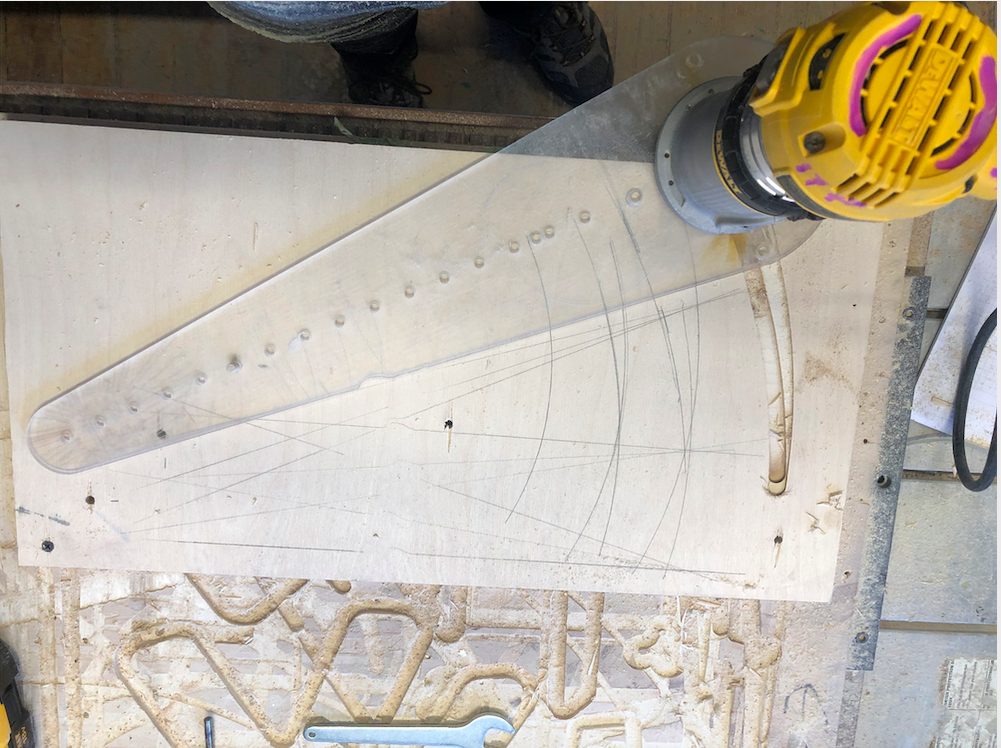

2nd radial router cut 6″x6″ pin and 6th hole in template

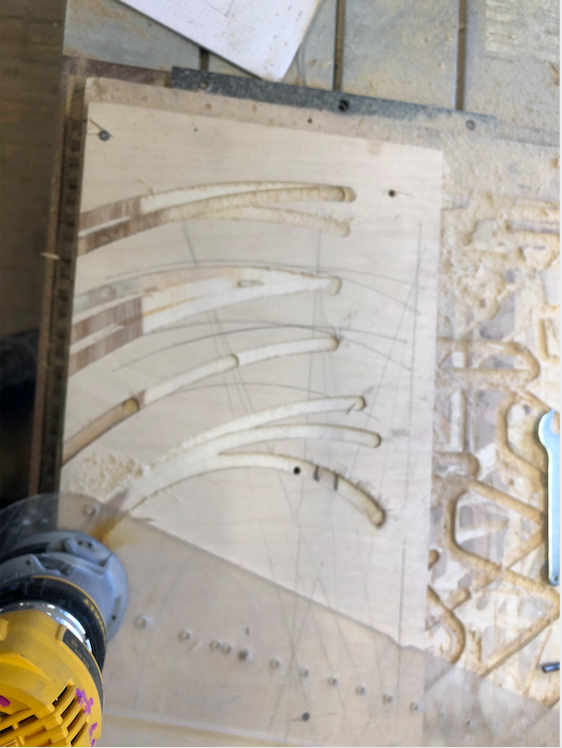

continue to adjust the pin point and radial arch for router cut

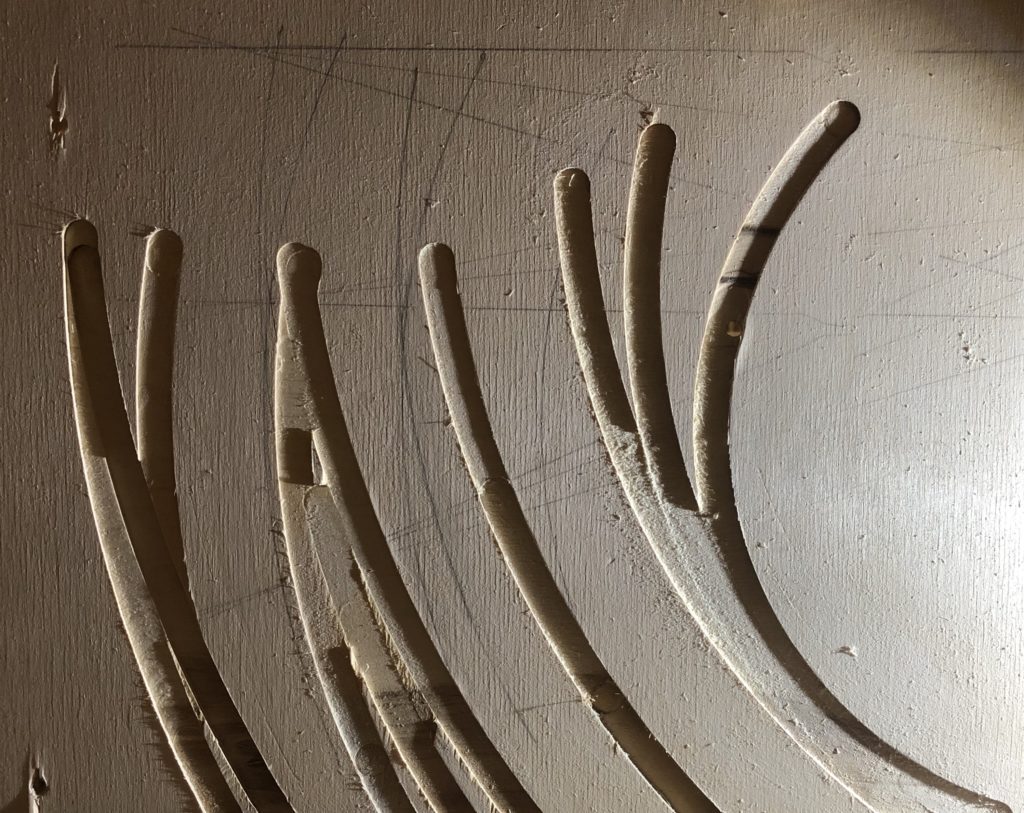

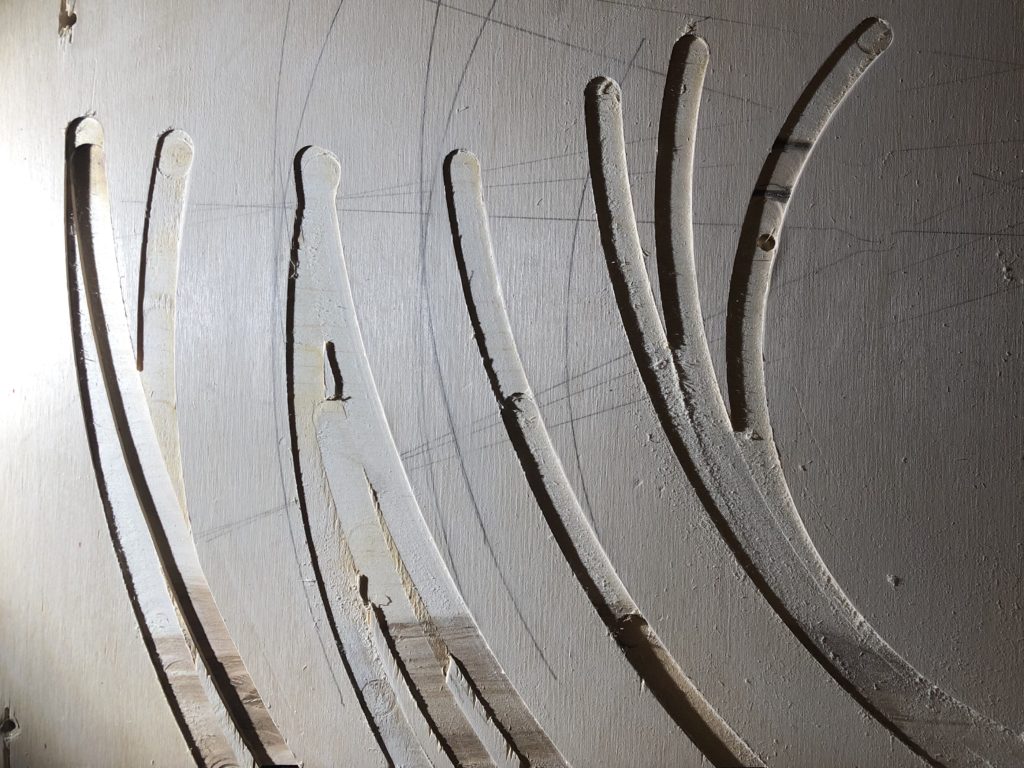

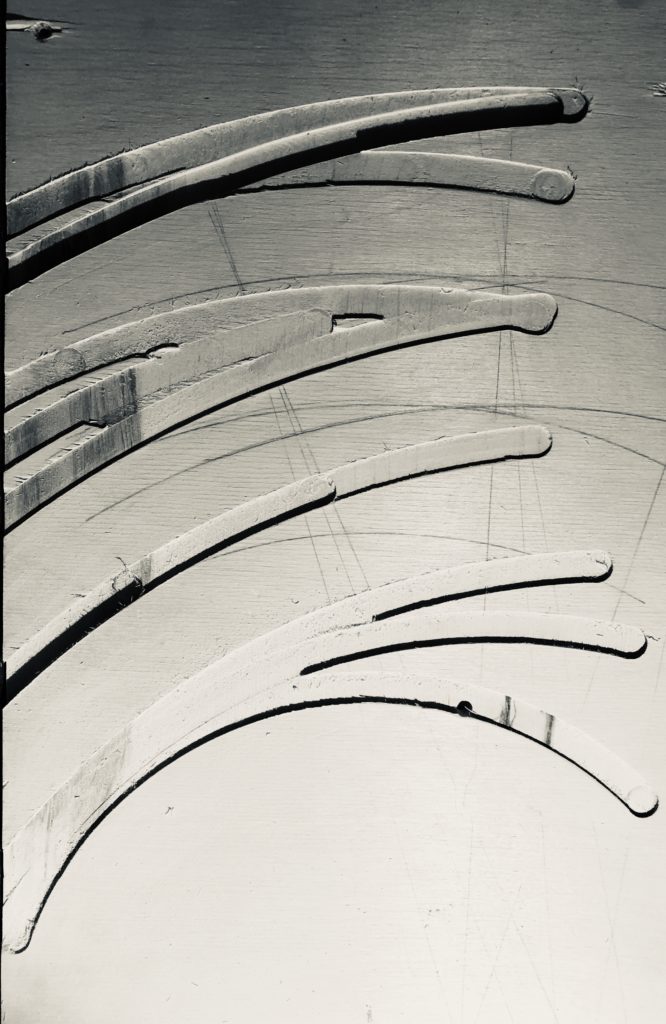

add depth of router cut along radial path of router cut
