First CNC skill builder

Posted on by Michael Fuller

Workshop CNC

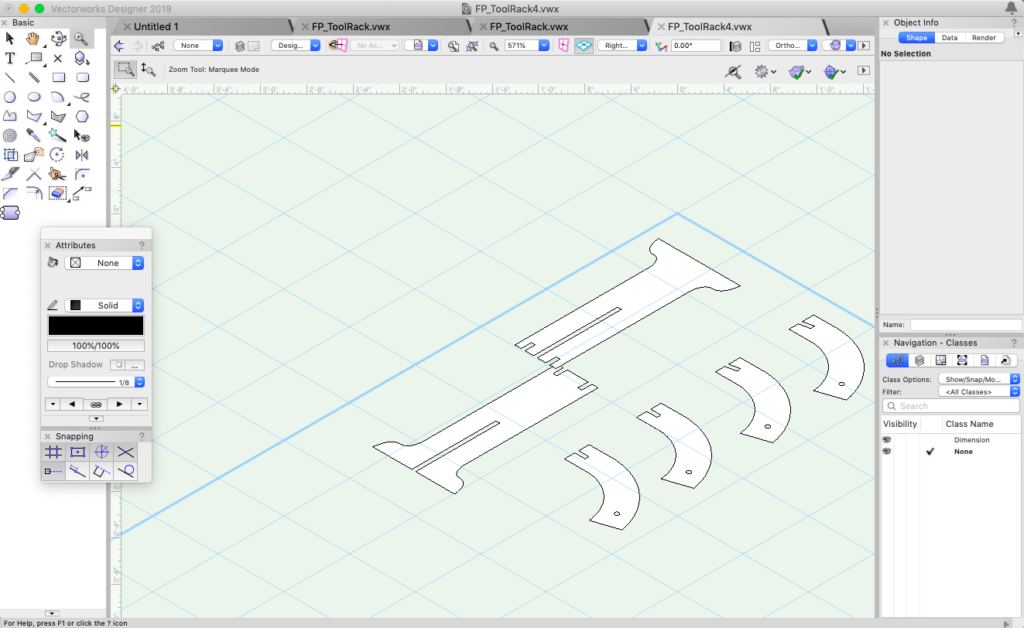

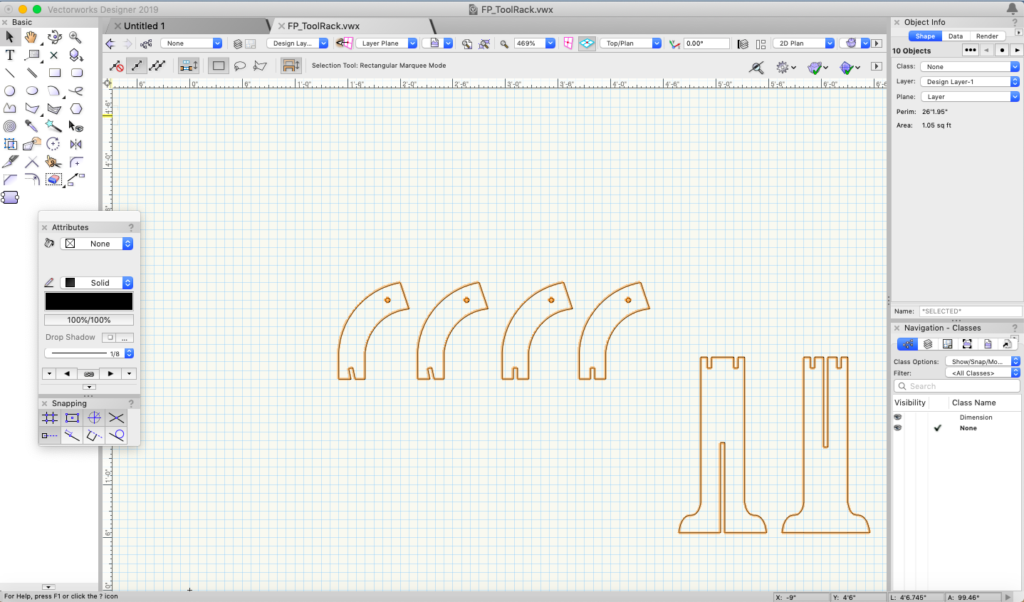

Vectorworks Drawing

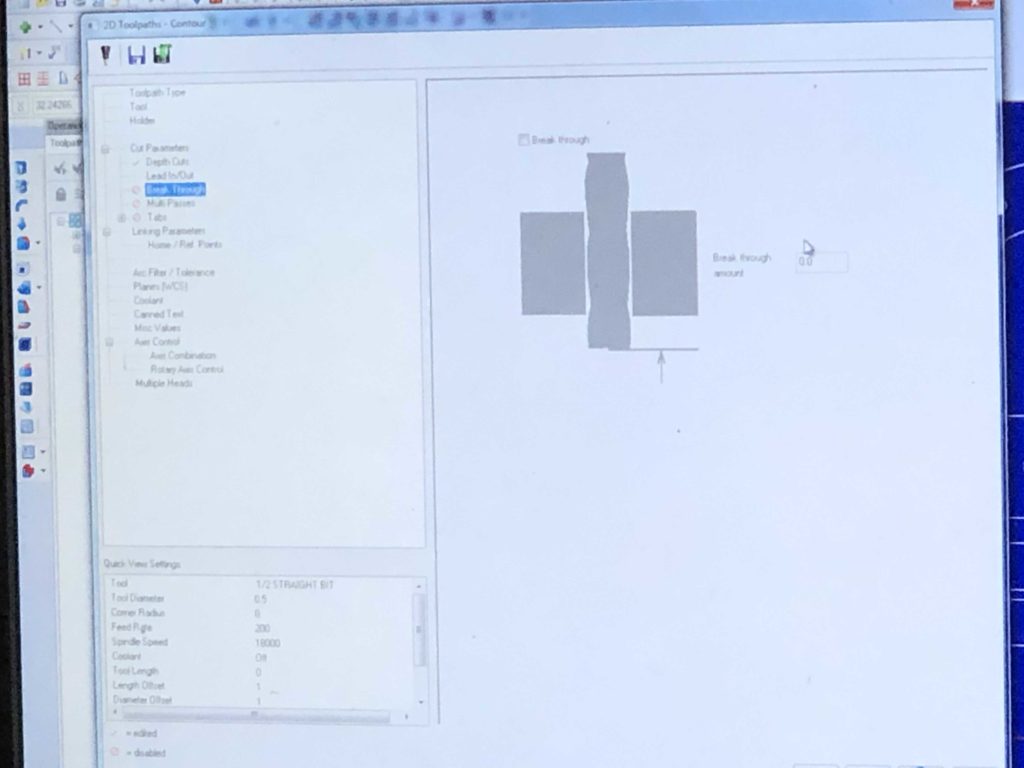

Intro to MasterCam

Rushali Introduced us to MasterCam

Opened DWG

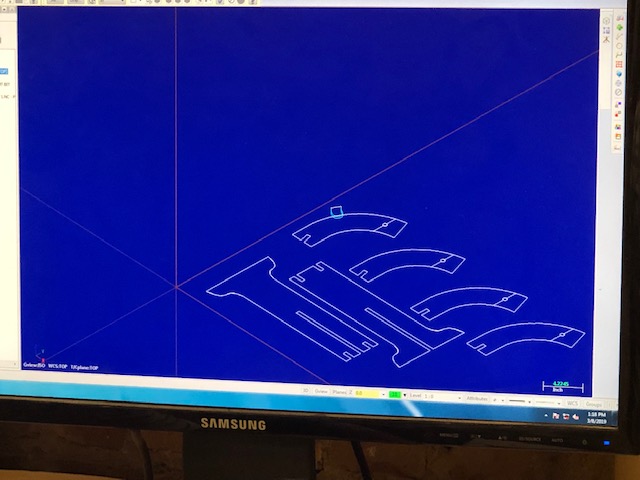

opened my drawings and F9 to locate in upper right quadrant
clockwise arrow for outside cut.

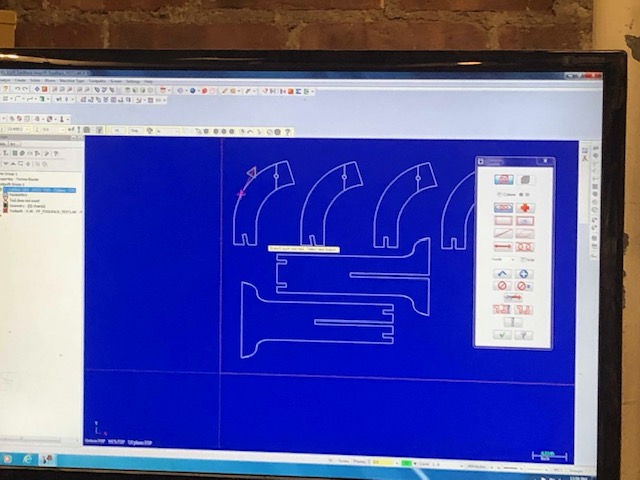

arrow red not green- this is where I got concerned that polygon has problems as well as the extra line though circle drill hole
looked as axonometric drawing and still see some concern extra lines

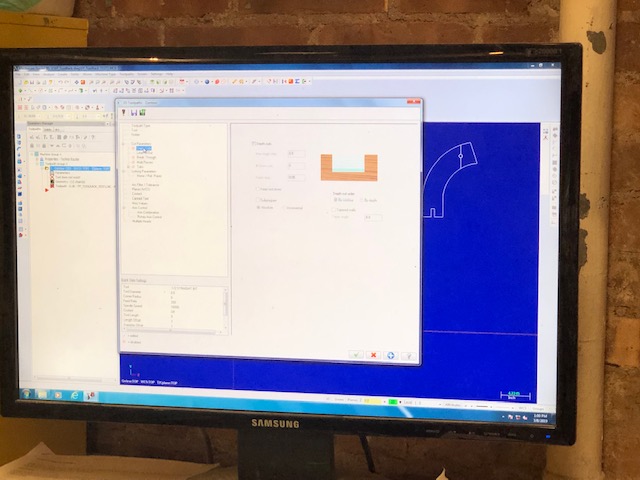

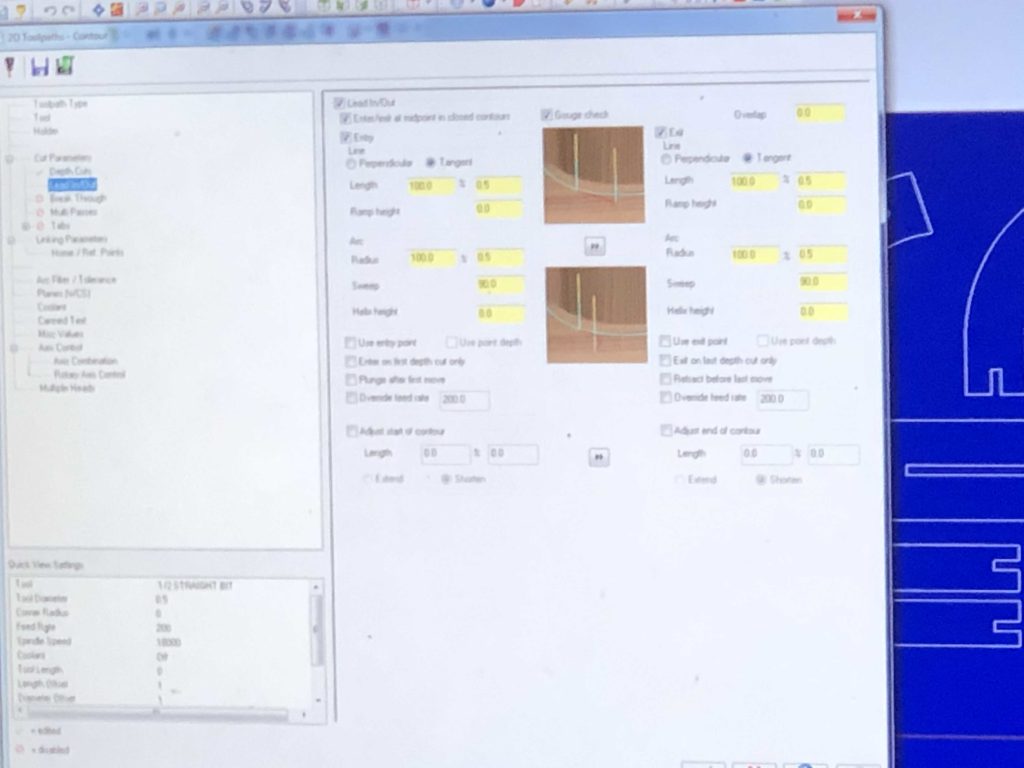

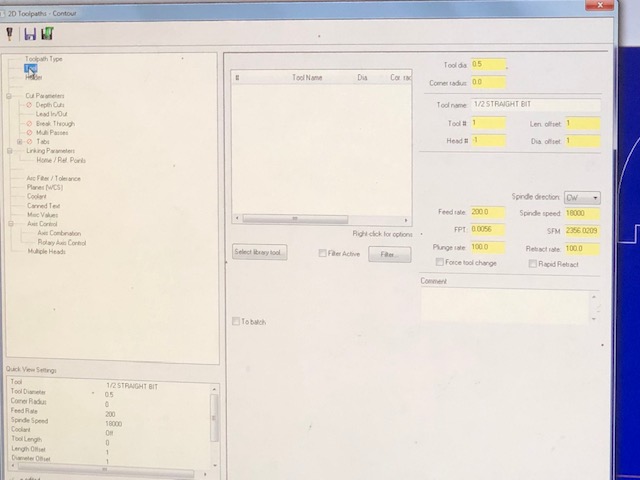

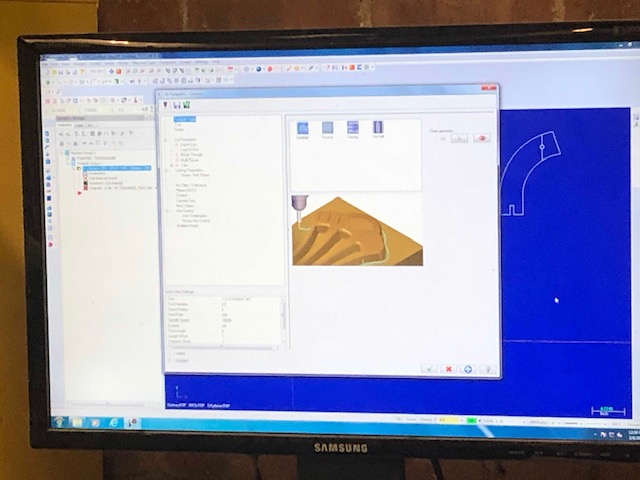

Continued to to set up MasterCam

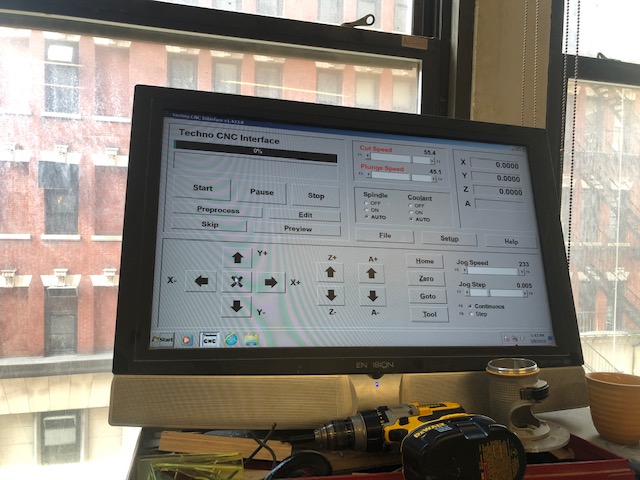

Inserted thumb drive into Techno CNC Interface

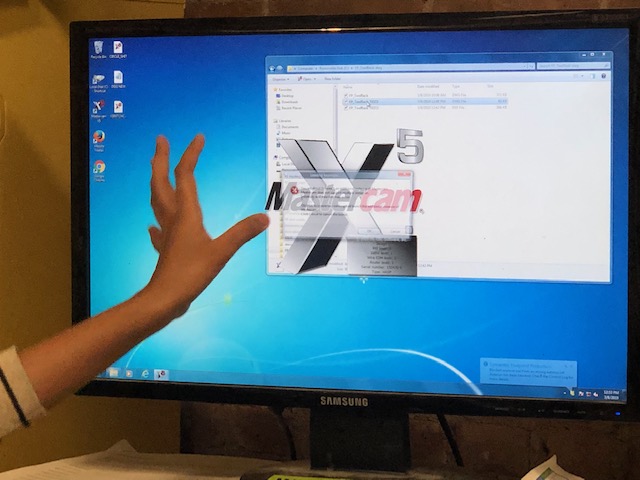

opened file
drawing wouldn’t load
inserted a drawing from Rushali to perform CNC operation

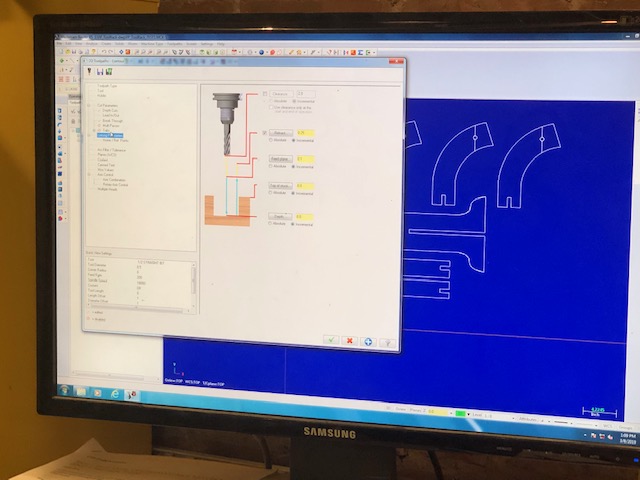

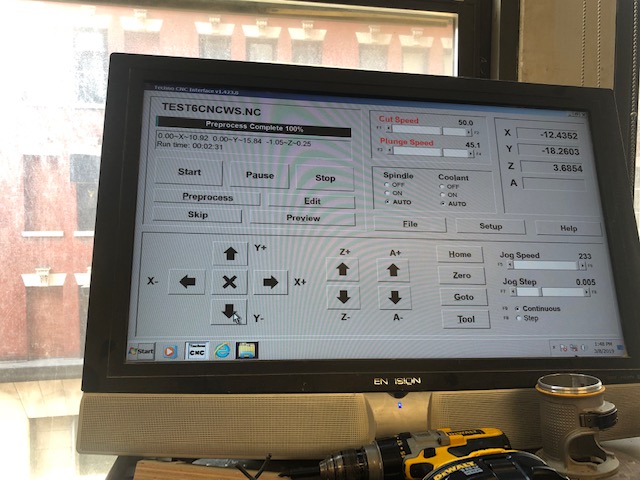

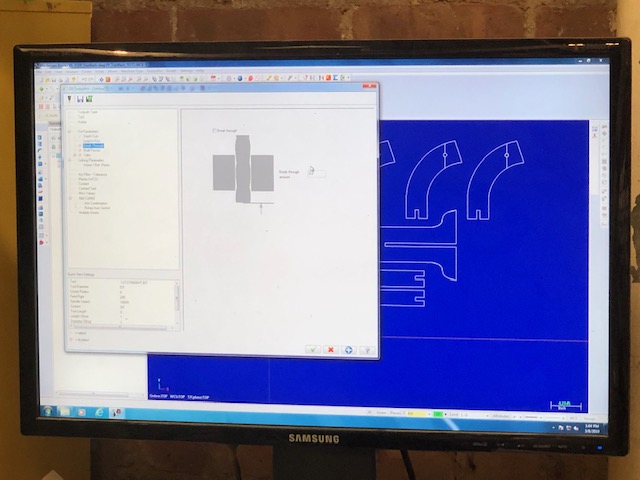

preview and set up to run
set up XYZ origin and ran program

This is all the documentation I have. I did not keep the test piece sample or documented the cutting.
